Waveshare 2.13 Inch E-Paper Display HAT (G) 250 x 122 Resolution 3.3 V/5 V Four-Colour e-Ink Display Paper Screen Module for Raspberry Pi 4B/3B+/3B/2B/Zero/Zero W/Zero WH, Jetson Nano,Arduino

• No backlight, keeps displaying last content for a long time even when power down
• SPI interface, for connecting with other controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
• Ultra low power consumption, basically power is only required for refreshing

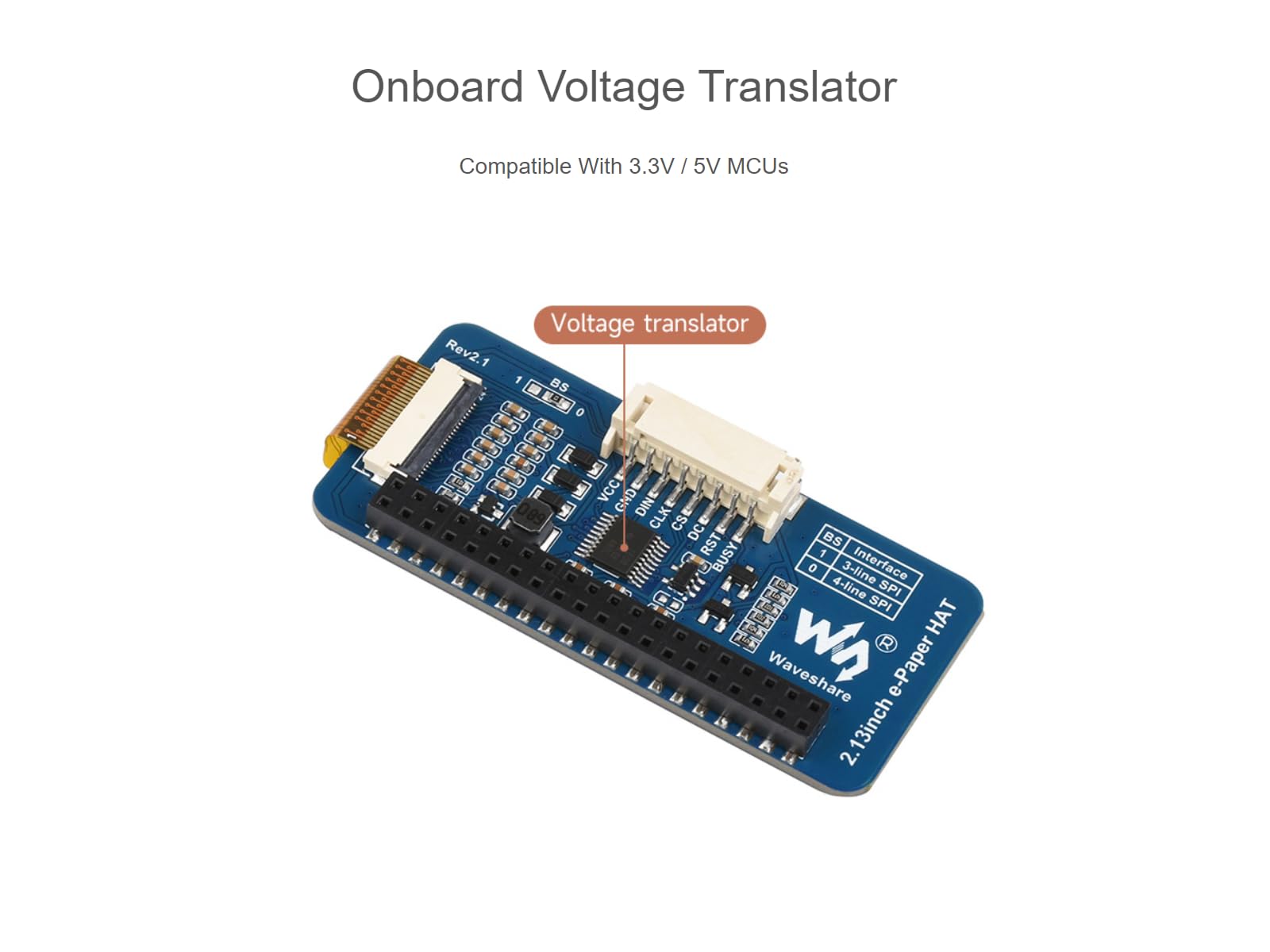

• Onboard voltage translator, compatible with 3.3V/5V MCUs
• Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

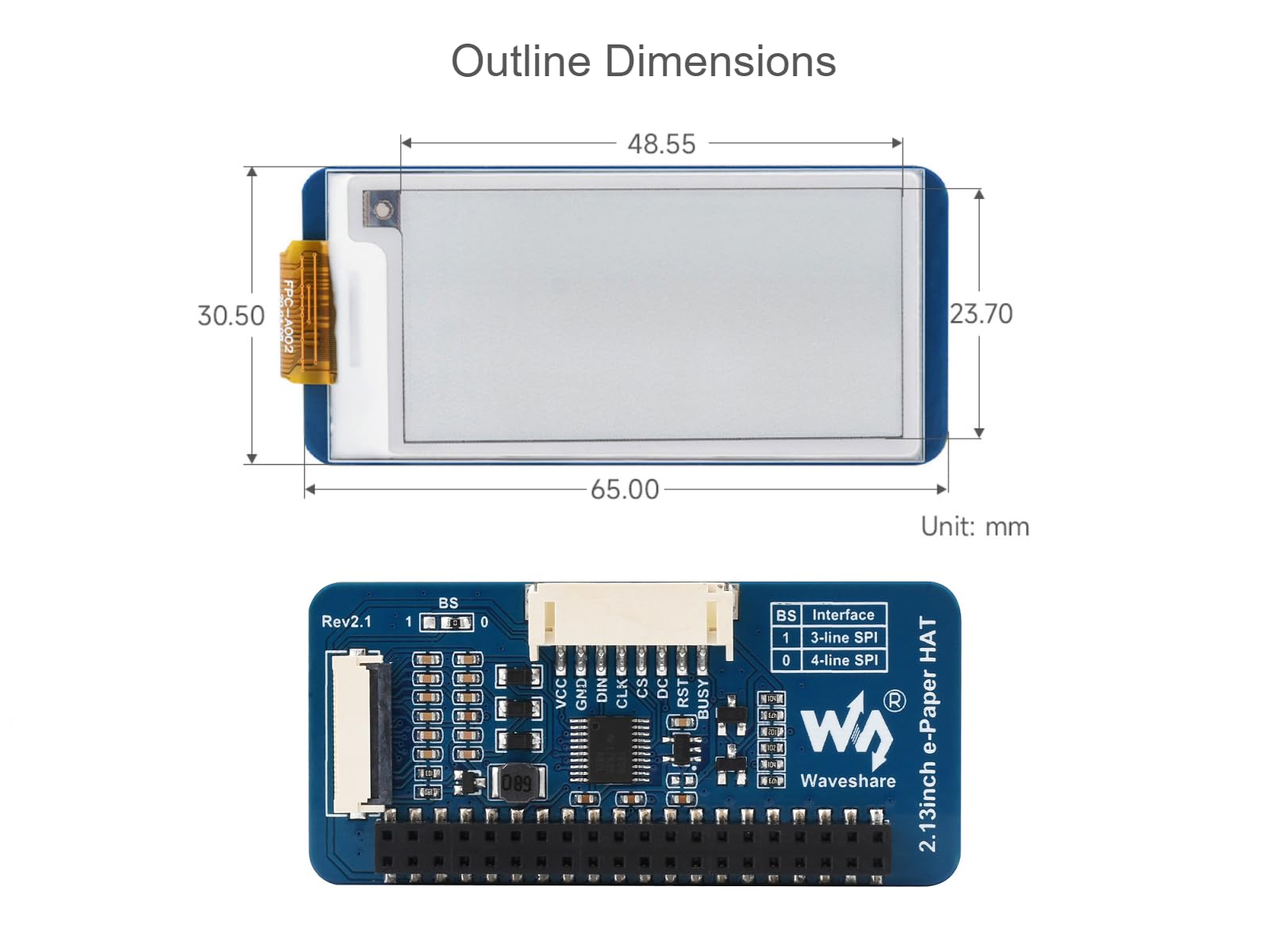

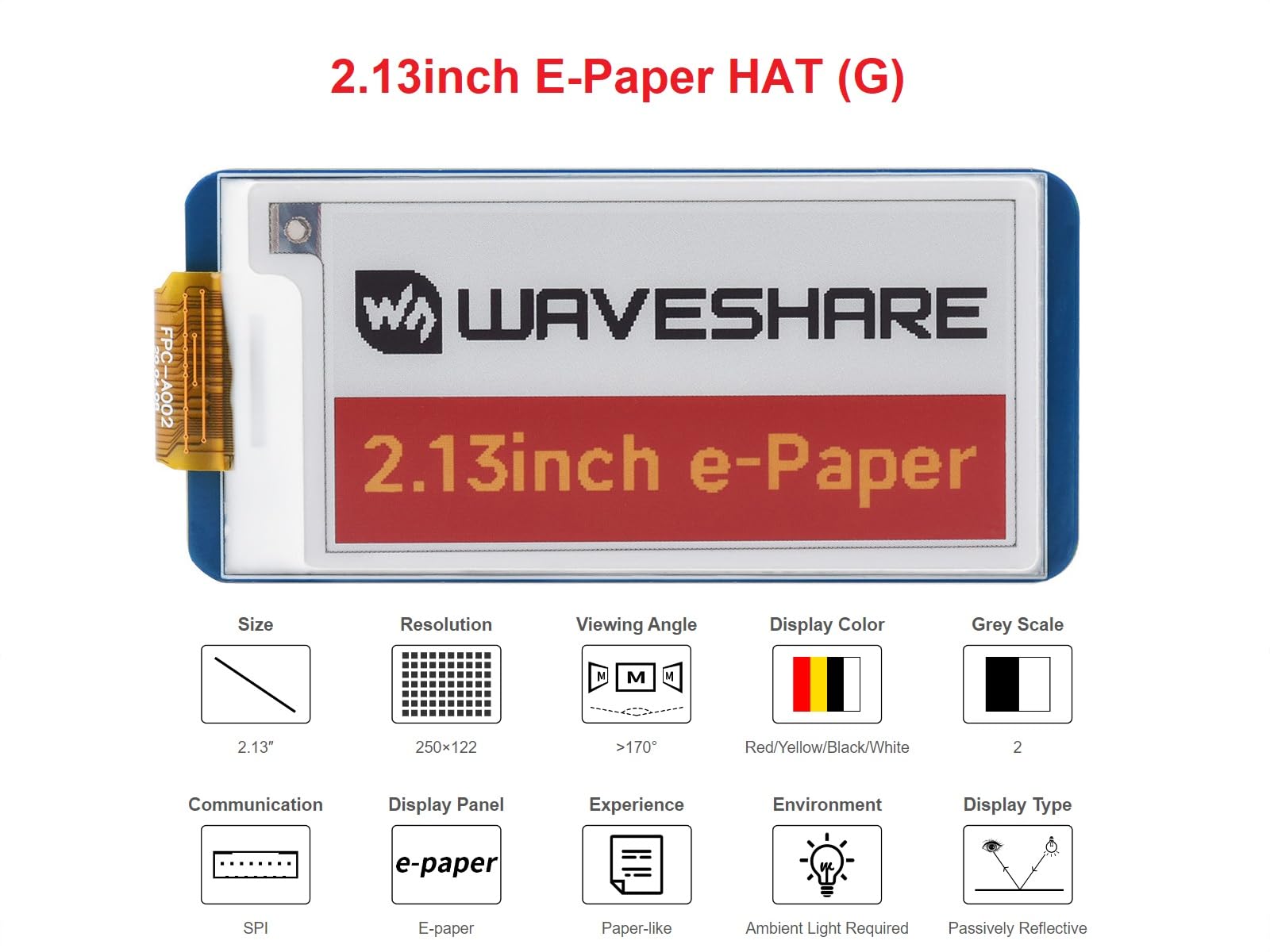

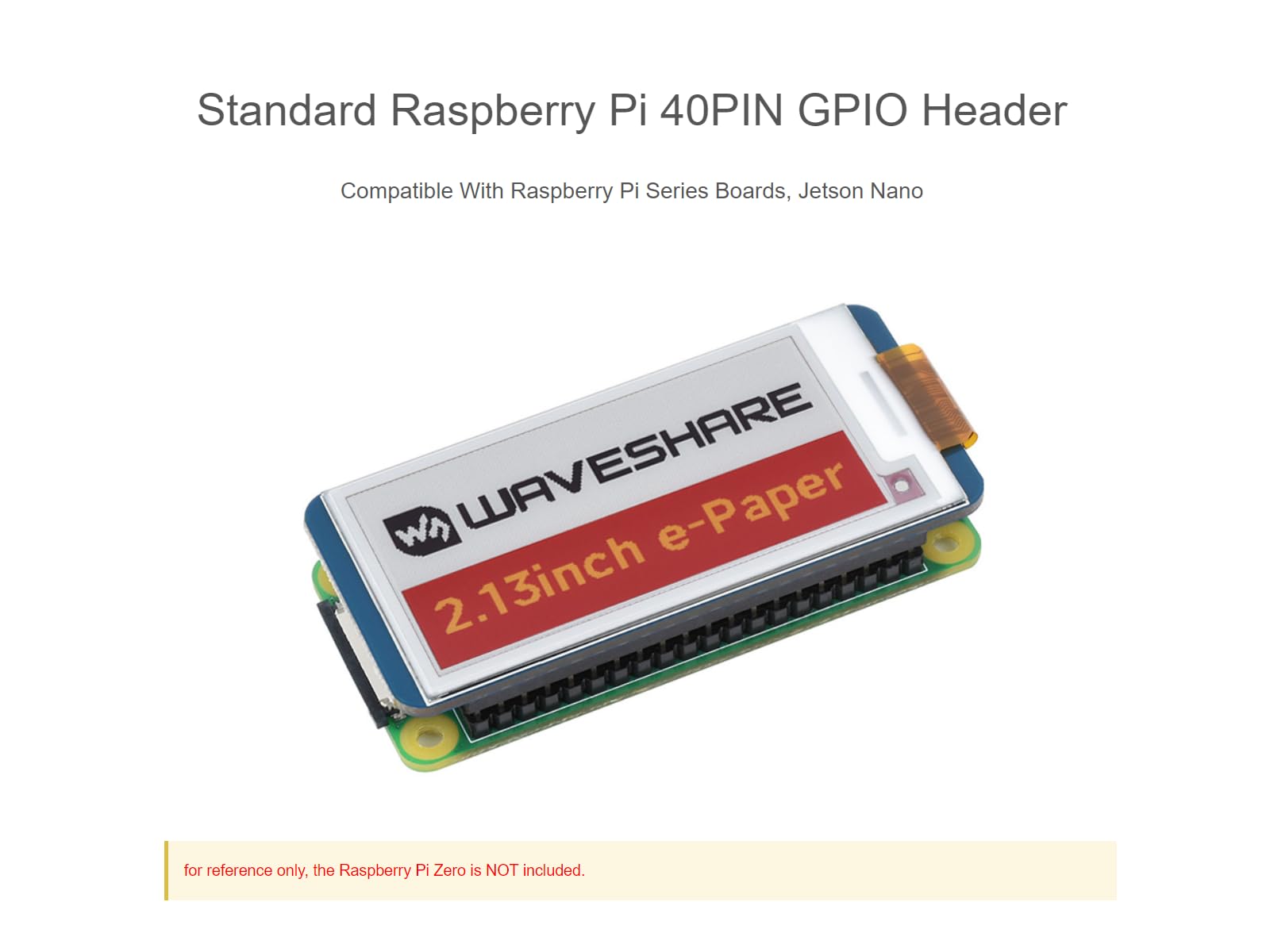

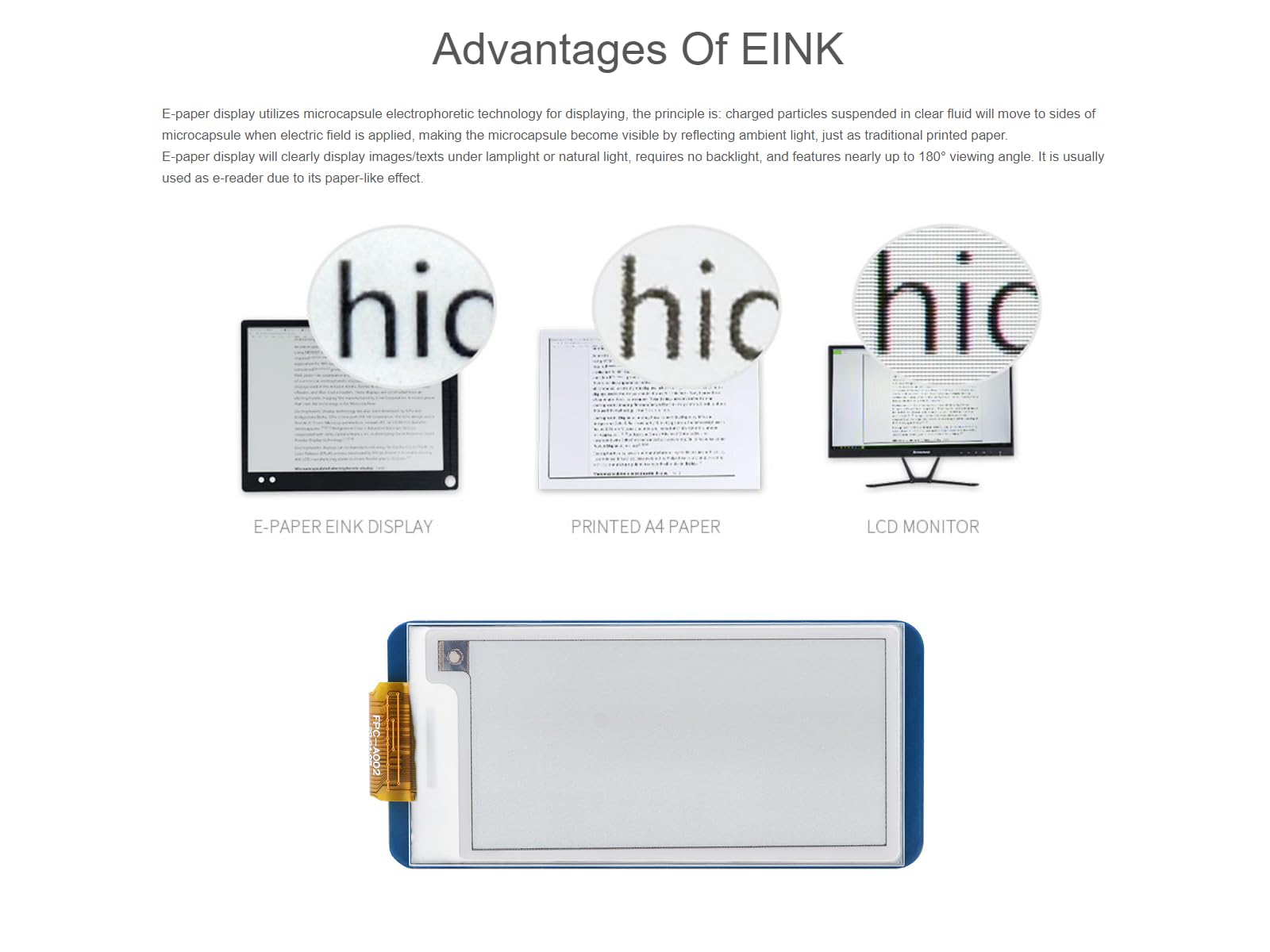

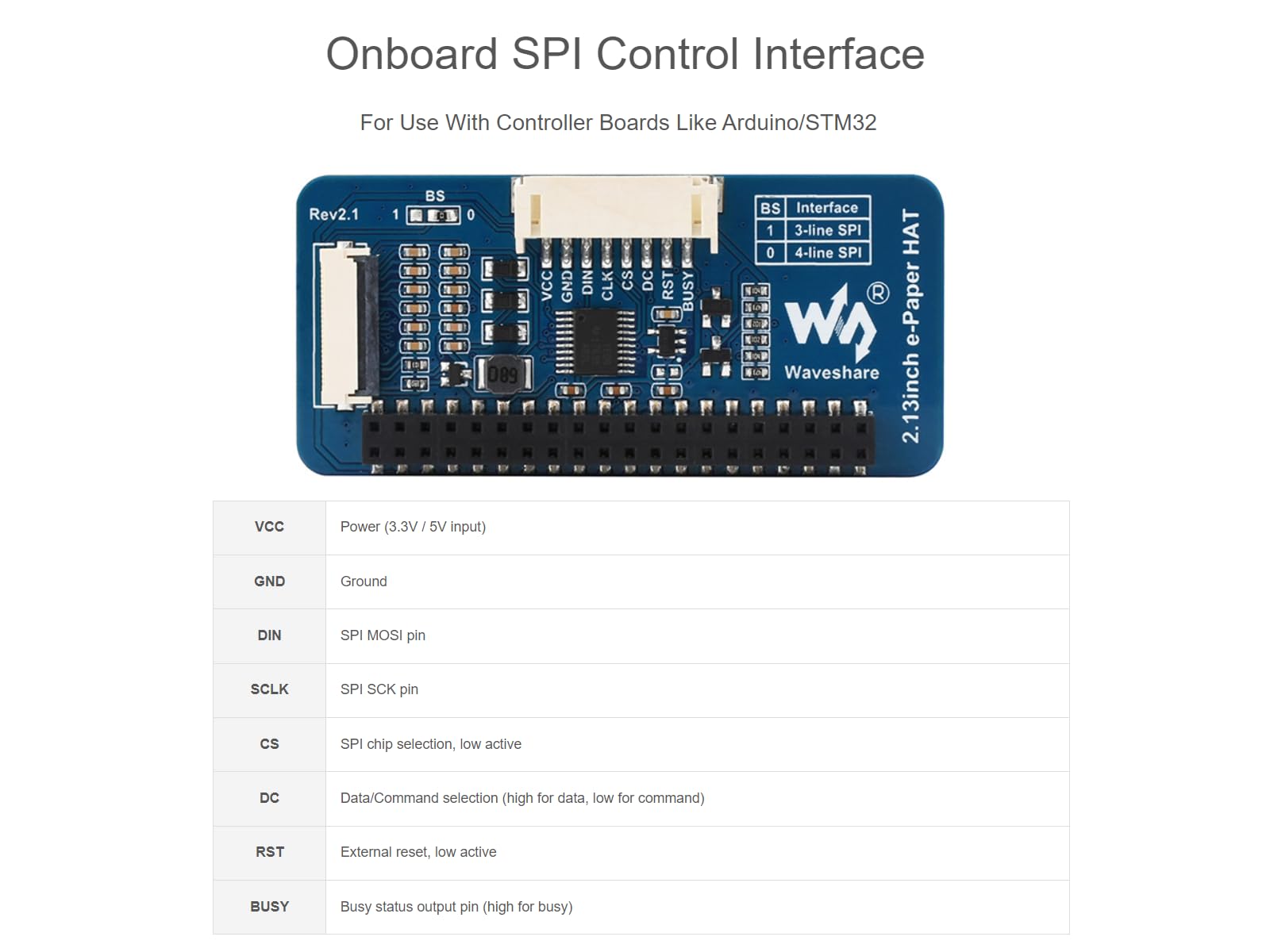

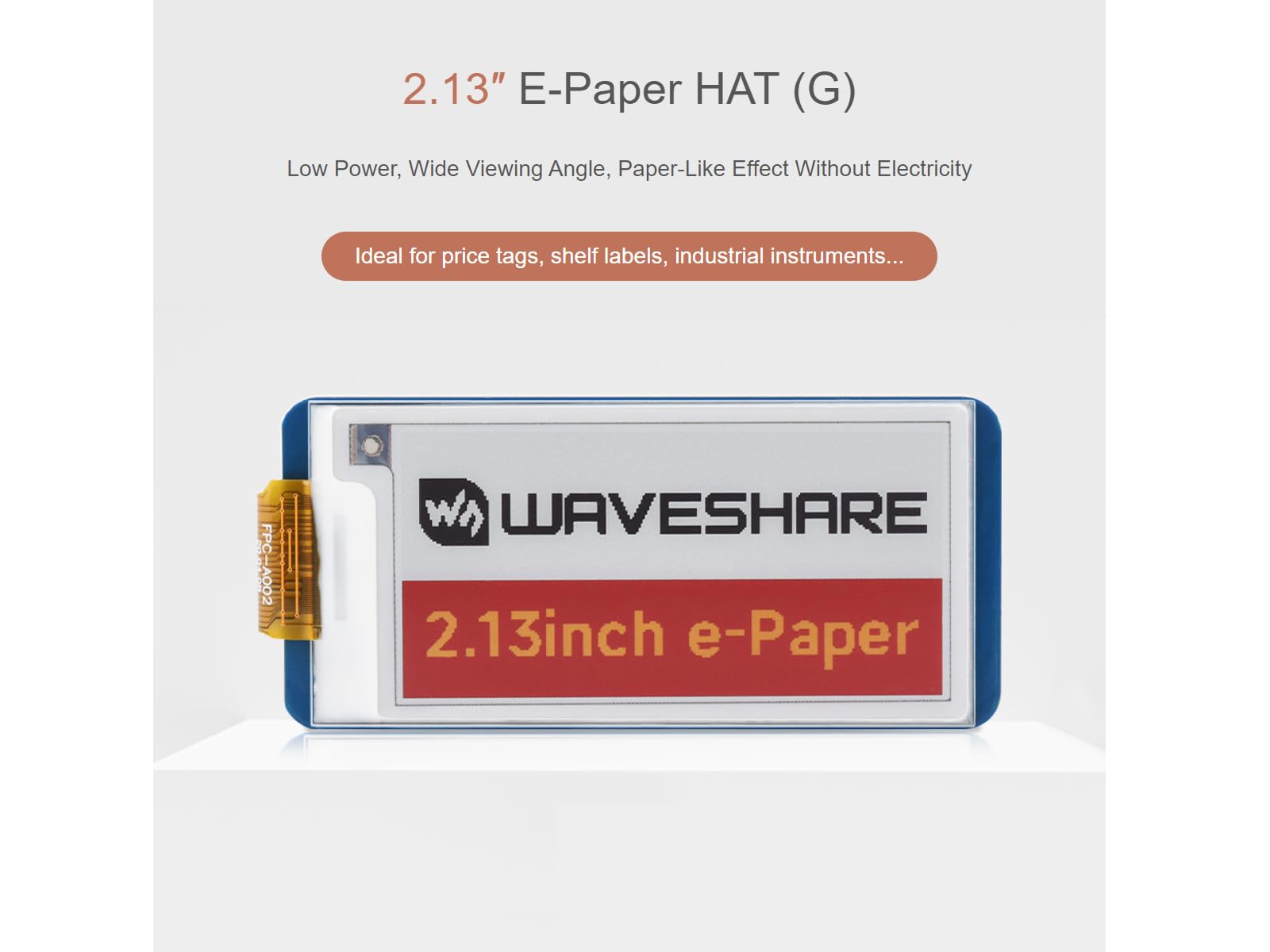

2.13inch E-Paper HAT (G), 250x122, Red/Yellow/Black/White, SPI Interface 1.2.13″ E-Paper HAT (G) Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity Ideal for price tags, shelf labels, industrial instruments... 2.Standard Raspberry Pi 40PIN GPIO Header Compatible With Raspberry Pi Series Boards, Jetson Nano 3.Onboard SPI Control Interface For Use With Controller Boards Like Arduino/STM32 4.Onboard Voltage Translator Compatible With 3.3V / 5V MCUs 5.Application Examples Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags... Specifications OPERATING VOLTAGE--3.3V/5V INTERFACE---3-wire SPI, 4-wire SPI OUTLINE DIMENSIONS---65 × 30.2mm DISPLAY SIZE---48.55 × 23.70mm DOT PITCH---0.1943 × 0.1942mm RESOLUTION---250 × 122 pixels DISPLAY COLOR---Red/Yellow/Black/White GREY SCALE---2 FULL REFRESH TIME---25s REFRESH POWER<10mW STANDBY CURRENT<0.01uA (almost none) VIEWING ANGLE>170° Advantages Of EINK E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper. E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect. Development Resources https://www.waveshare.com/wiki/2.13inch_e-Paper_HAT_(G)?Amazon Package Content 2.13inch e-Paper HAT (G) x1 PH2.0 20cm 8Pin x1
