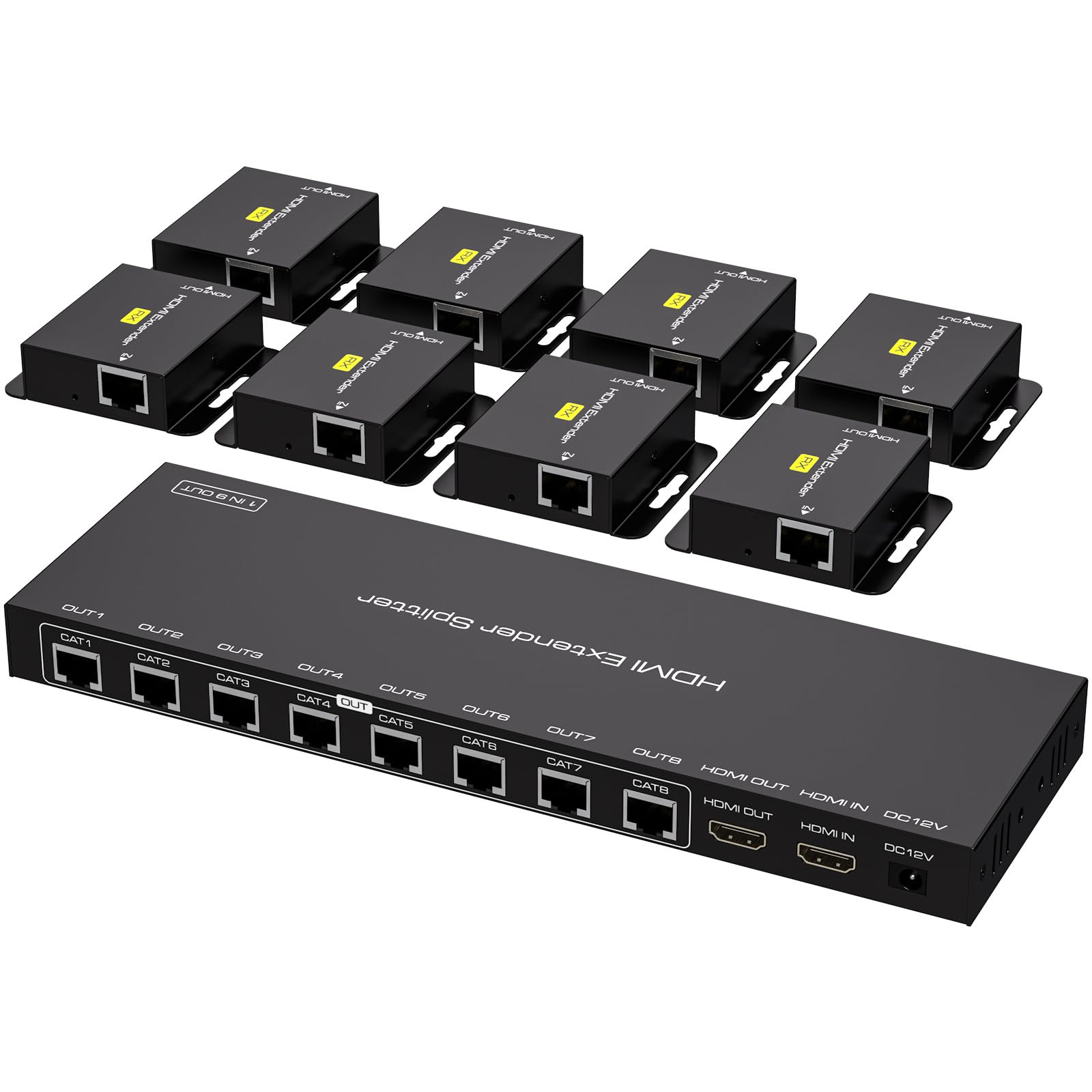

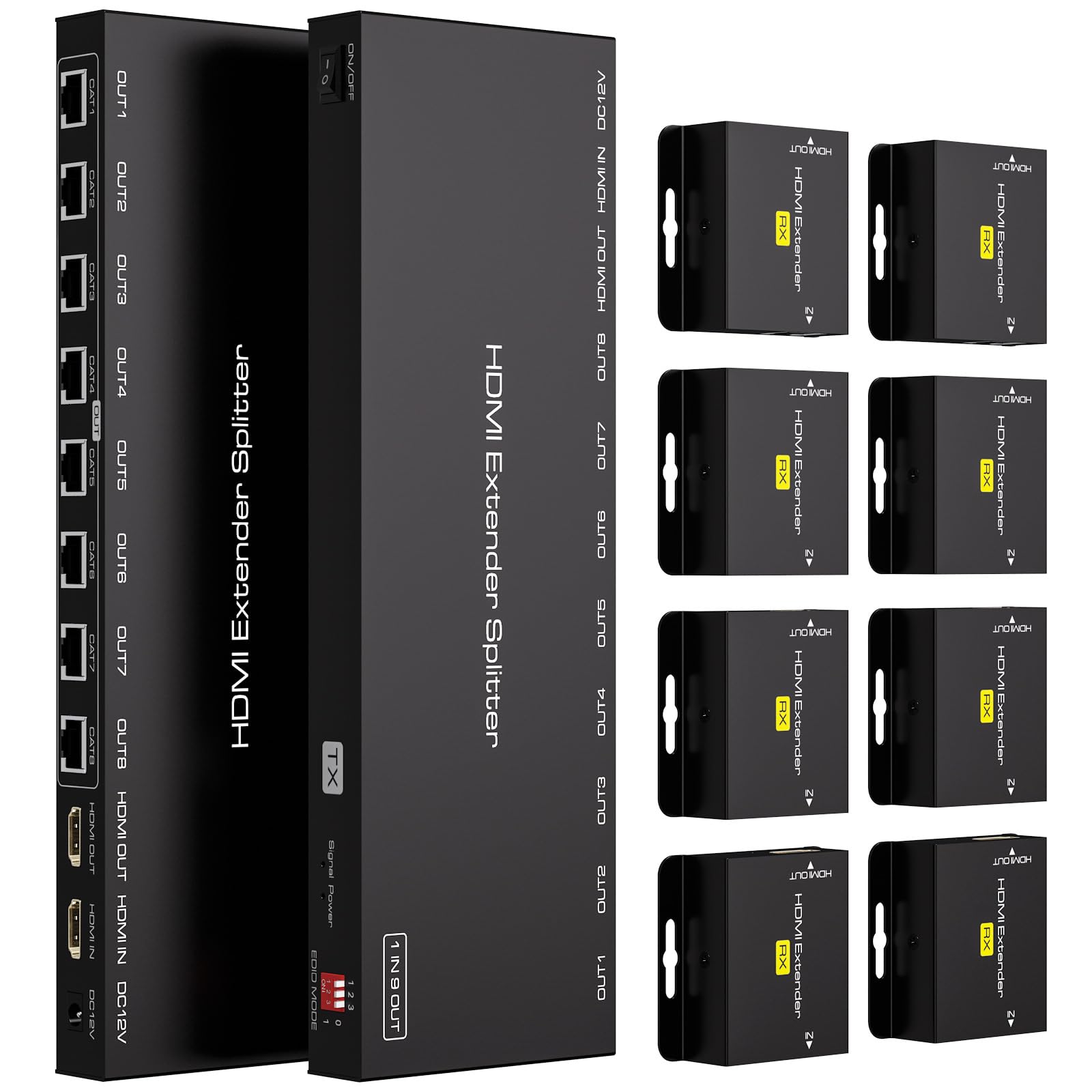

1X8 HDMI Splitter Extender,50M Network Cable Extender 1 in 8 out Over CAT5e/6 & POC(With EDID management)

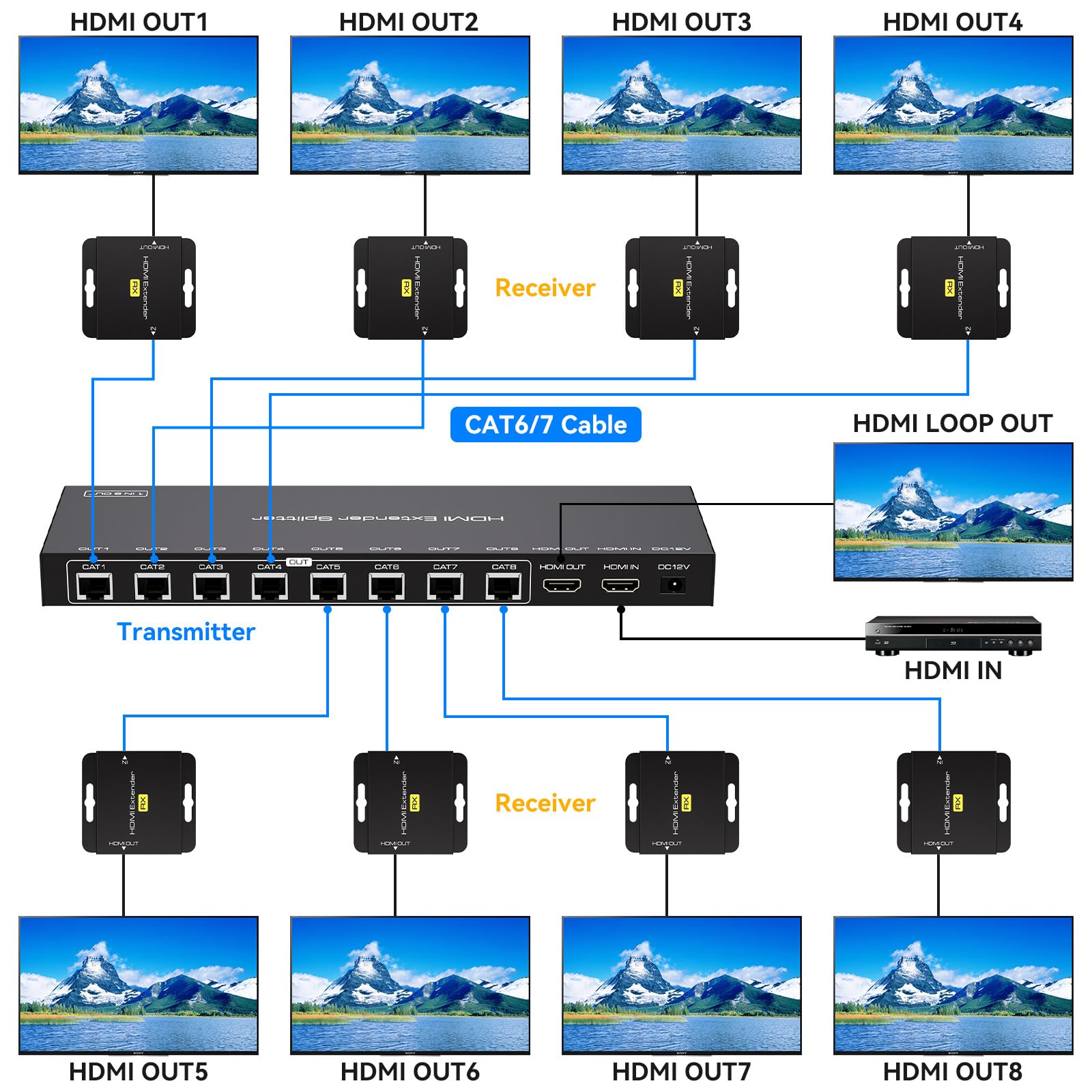

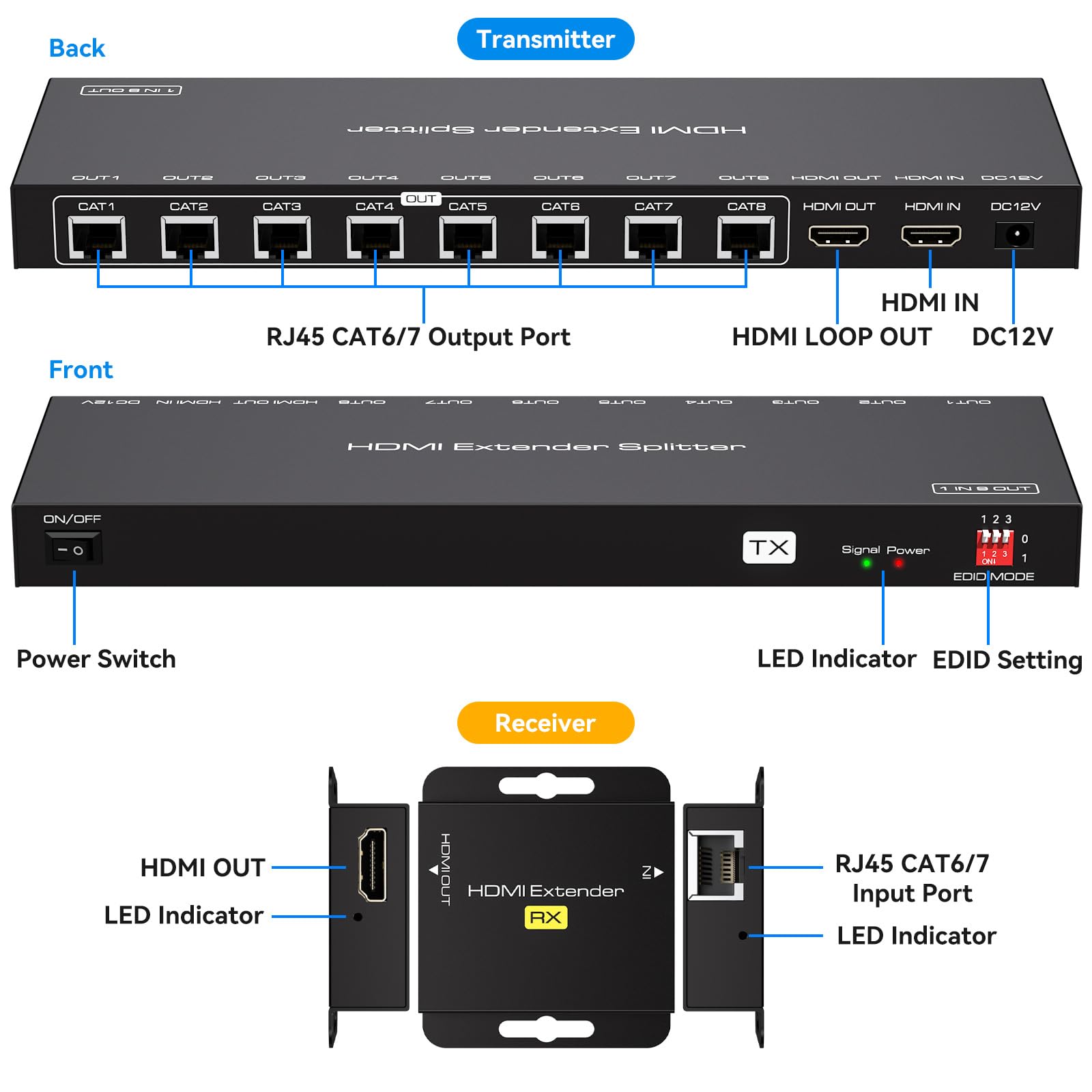

• 1:Support 1 HDMl input source distribute to 8 HDMl sink devices, UTP output portsconnect via the cat5e/6 cable with the receivers.

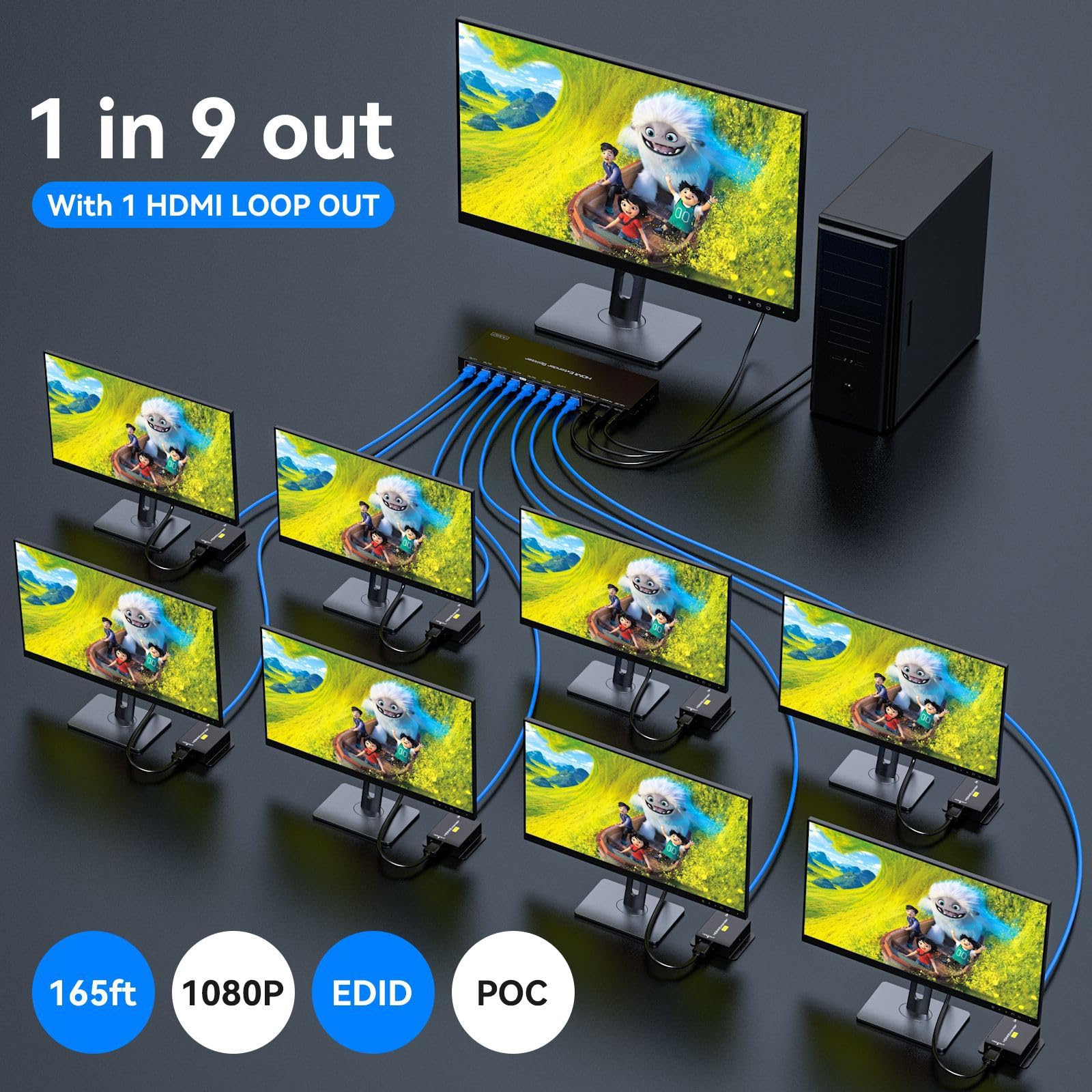

• 2: 1 Port HDMI loop output.Resolution reach up to 1080P.
• 3: 1 way HDMI input, four way network port output with 8 receivers, transmission 50m network cable extender.

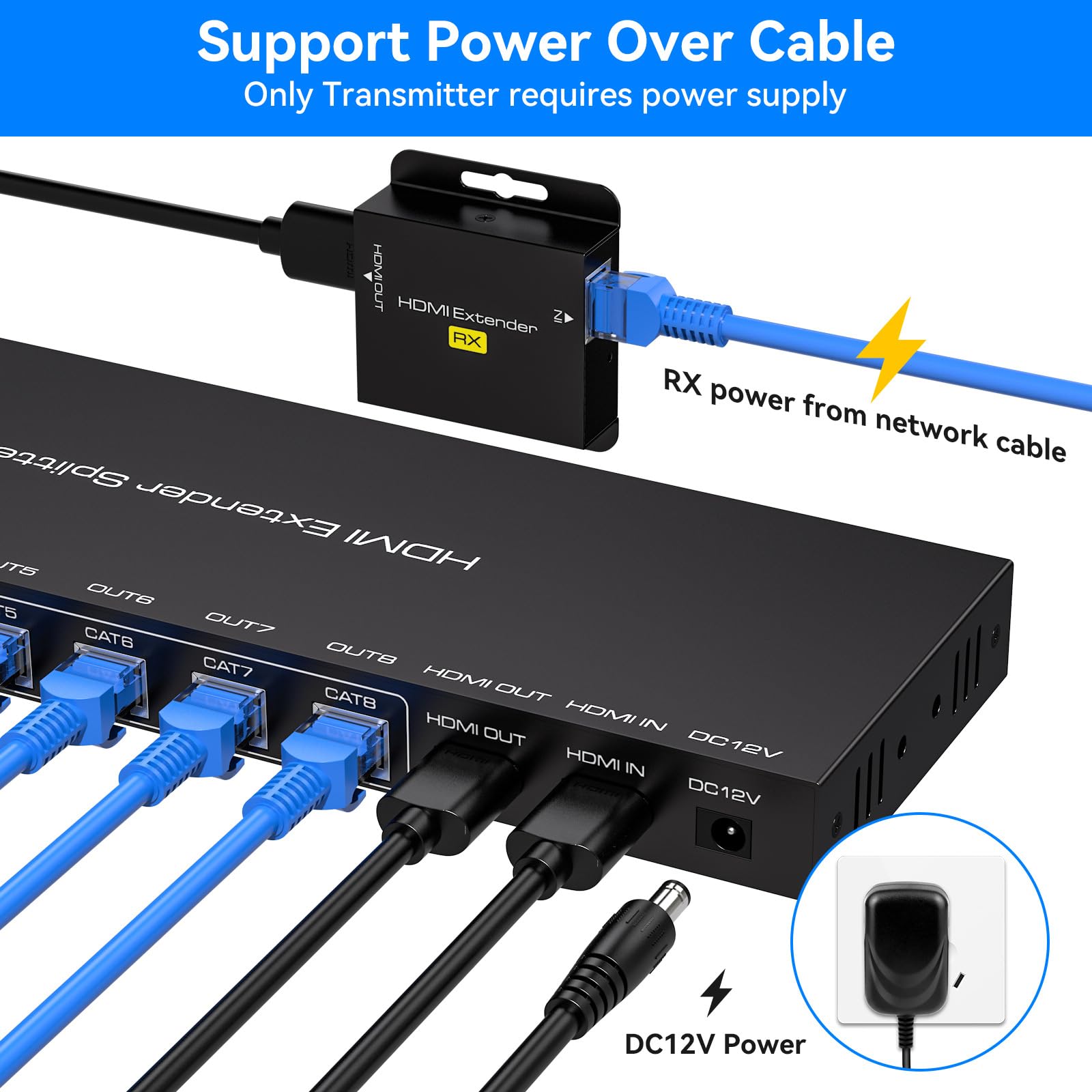

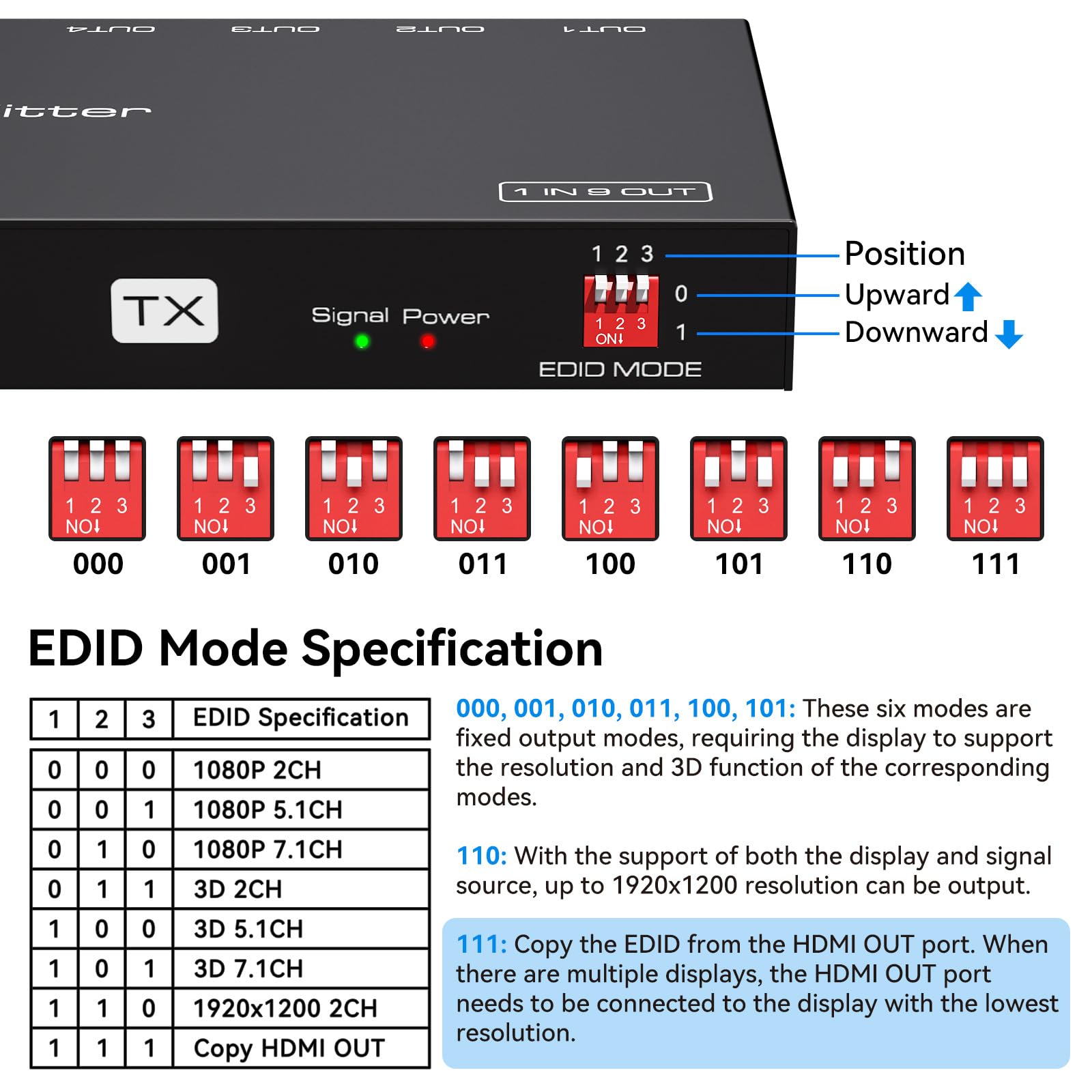

• 4: Easy to install.Supported POC(Receiver power from Transmitter).Support for EDID management.
• 5:Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD.Lossless transmission.

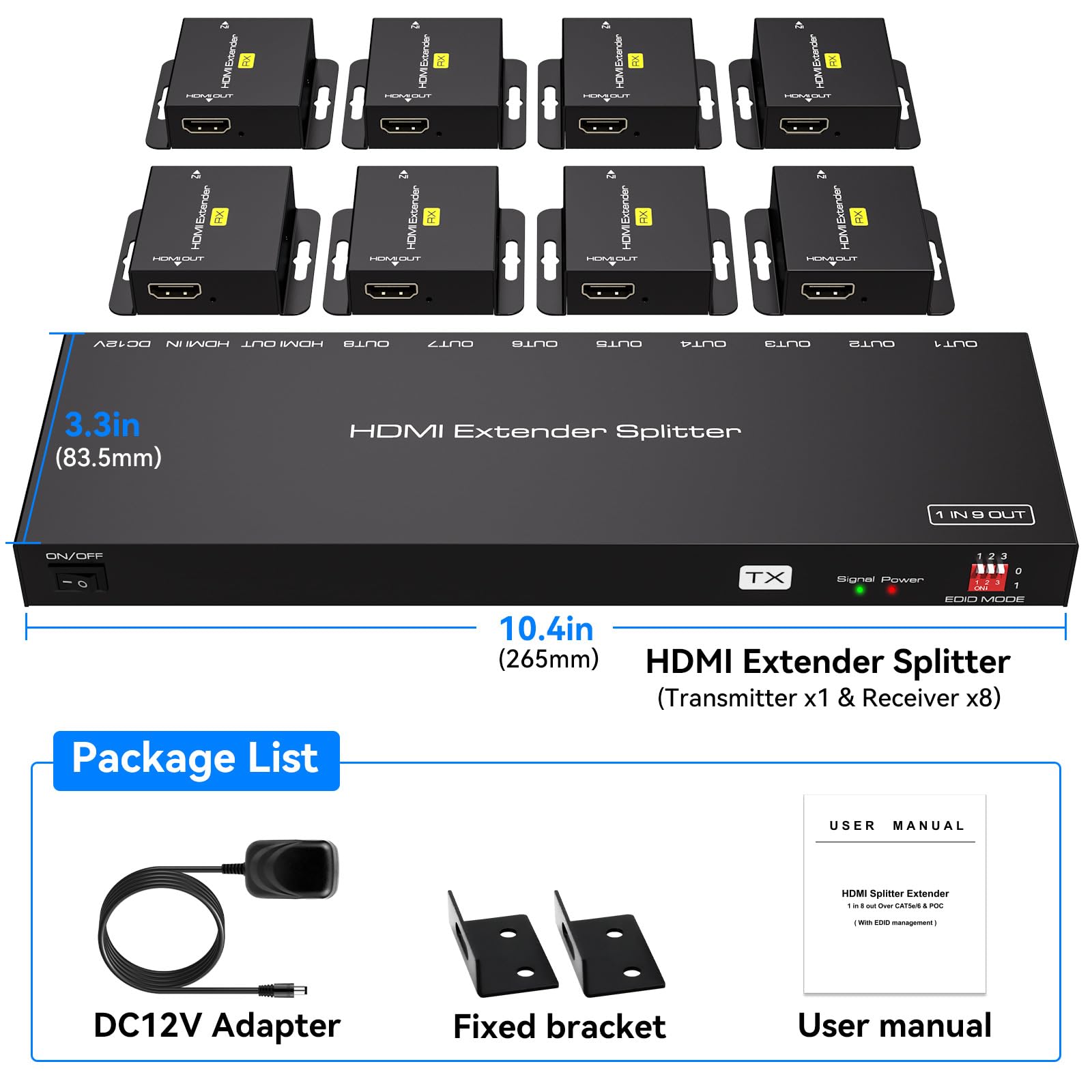

Description Features Support 1 HDMl input source distribute to 8 HDMl sink devices, UTP output portsconnect via the cat5e/6 cable with the receivers. 1 Port HDMI loop output. Resolution reach up to 1080P. Support Blue-Ray 24/50/60fs/HD-DVD/xvYcC. Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD.Lossless transmission. Easy to install. DC 12v power supply. Supported POC(Receiver power from Transmitter).Support for EDID management. specifications HDM resolution:1080p/3D/1080i/720p/576p/576i/480p/480i Support video color format: 24bit Support audio format:DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD Max bandwidth:165MHz. Max baud rate:4.95Gbps lnput/Output TMDS signal:5~1.5Volts p-p(TTL) lnput/Output DDC signal:5Volts p-p (TTL) Input cable distance :≤10m AWG26 HDMl standard cable Output cable distance: ≤50m CAT5e/6 cable Max working current :12V/950MA(SPORT) Power adapter format Input:AC(50HZ,60HZ) : 100V-240V Operating Temperature range: (-0 to +40C) Operating Humidity range:5 to 90%RH(No Condensation) Storage Temperature :-20°c~60°C / -4F ~140°F Dimension(L x W x H):265x83.5x22 (mm) Net weight:(With 8xReceiver)995g Package Contents 1.9-Port HDMl Splitte with 8 Receiver:1set 2.DC12V Power Adaptor:1pcs 3.User manual:1pcs
