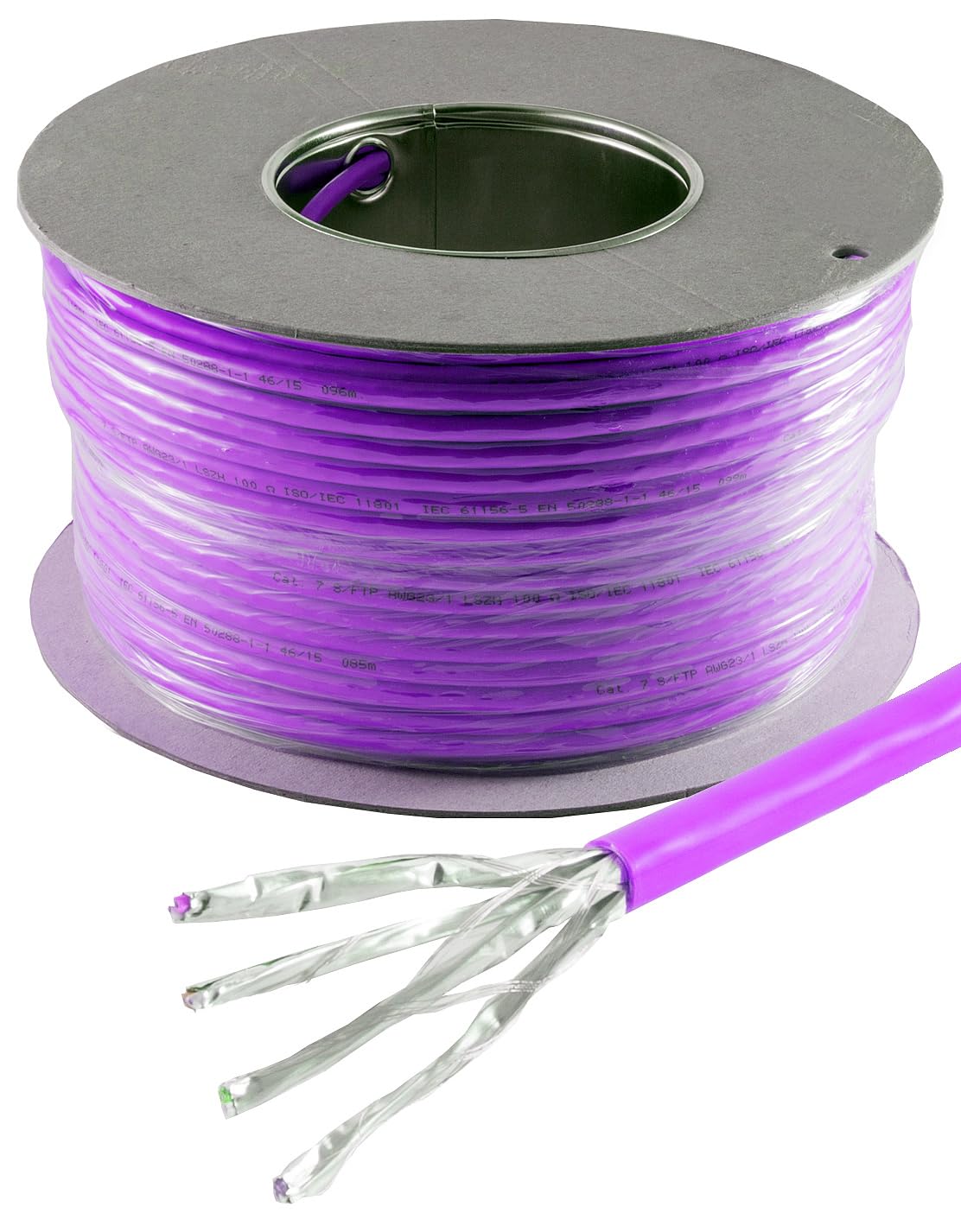

1aTTack.de CAT 7 A installation cable network cable CAT.7 A LAN halogen-free installation cable CAT7 cable network cabling data cable Gigabit copper Ethernet 100m

• Cat7A 1000 MHZ installation cable with pure copper cores (Cu) according to AWG 23/1, S/FTP double shielded PiMF + foil pair shield (foiled twisted pair) and halogen-free sheath LSZH Ø 7.5 mm outer diameter
• CAT.7A network installation cable from 1aTTack made of pure copper with B2CA s1a d1 a1 fire protection class Euro CPR
• Data transmission up to 10,000 Mbit/s (10 Gbit/s) and a bandwidth of max. 1000MHz data frequency
• Compatible with 10/100/1000/10000 Base-T, 10 GBase-T IEEE 802.3, WLAN network, PoE & suitable for LSA connections such as network sockets, patch panels, keystone modules, network connectors, server cabinets
• Ethernet LAN installation cable for office, apartment, house, home, basement, commercial, industrial

Product Information Network cable Cat. 7A, suitable for structured wiring of indoor buildings. · Specifications: Cat. 42A (Class FA) · Transmission frequency up to: 1000 MHz · Bandwidth up to: 10 Gbit/s Number of shields: 2 layers. · Shielding 1: PIMF laminated aluminium foil (100% dense) · Shielding 2: Tinned copper braid · Shielding class: S/FTP · Cable Construction: AWG 23/1 · Conductor Material: Copper · Conductor Type: Solid Conductor Number of conductors: 8 (4 x 2 twisted pairs). · Cable Type: Round Cable · Cable sheath: LSZH (Halogen-Free) · Cable diameter: approx. 7.5 mm. · Euroclass Building Products Regulation: CCA-S1A,D1,A1 · Cable colour: Violet · Winding: Paper spool. · Length: 100 m
