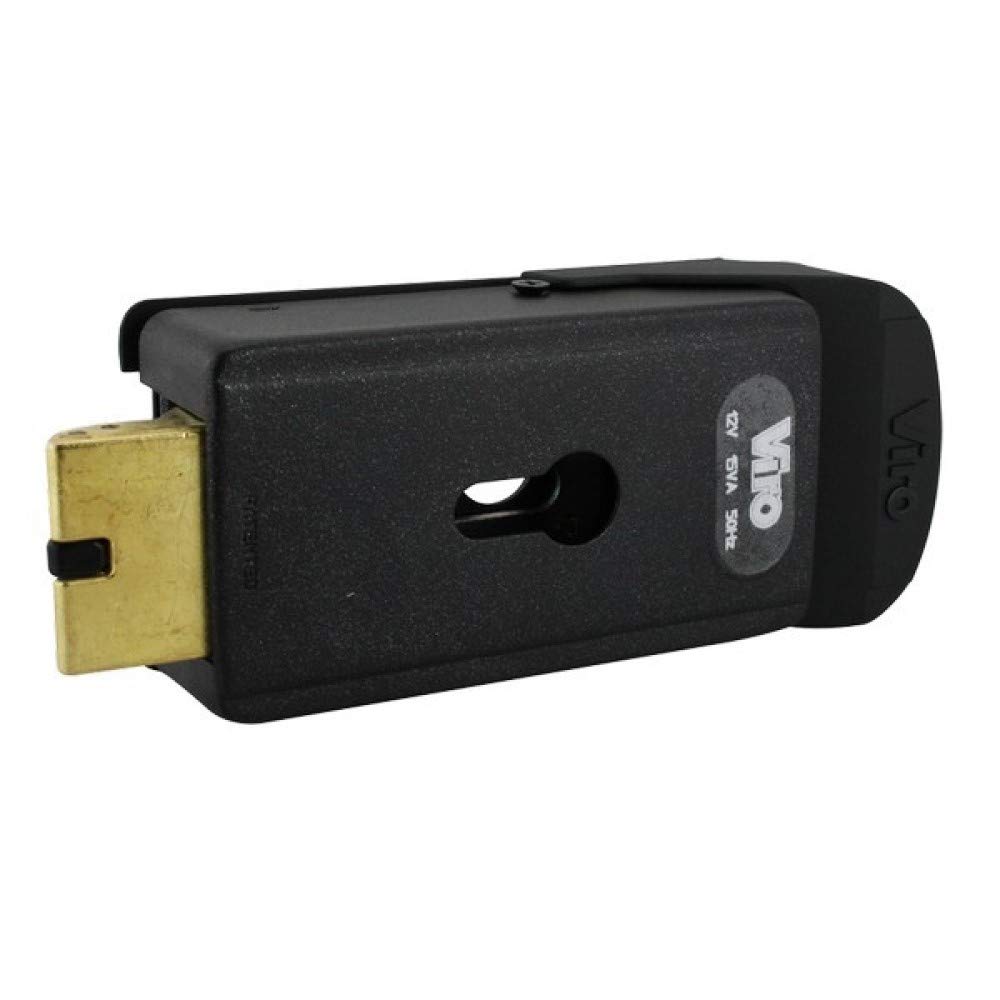

1.7918.H.469 Viro V06 Electro Mechanical Lock for Horizontal mounting Anthracite

• Case: one-piece galvanized steel.
• Cover: galvanized steel
• Voltage: standard 12V AC
• Suits door ,gates or driveways.Manual or automated both.
• Backset : 70mm

The V06 electric lock is suitable for inside or outside manual or automatic doors and pedestrian or drive-through gates and is interchangeable with the V96 electric locks. It is standard supplied with the service function and, by simply removing an internal part, can get the security function. Its small size and the floor striker provided make it ideal for vertical installation on narrow frames; it can however also be mounted horizontally, using an optional striker. Installation: vertical or horizontal. Backset: 70 mm. Functions: service (standard):the lock opens with the electric impulse and only resets once the door/gate has been opened and then closed. It is therefore suitable for use with doorclosers and/or all types of automation systems. security (selected by manually removing an internal part): the lock opens only when electric impulse and manual or automatic pressure are applied simultaneously. It is therefore not advisable to use it with a doorcloser and/or unsuitable automation systems. Double replaceable coil: which distributes the load uniformly and ensures a long working life. Voltage: standard 12V AC (on request 12V DC; 24V AC or DC). Case: one-piece galvanized steel. Cover: galvanized steel. Rotating dead-bolt solid brass, with nylon insert which makes the locking more silent.
