01 Store Camera Converter, Front Rear Camera Control Box Camera Switcher for Vehicles with Monitor and Reversing Camera

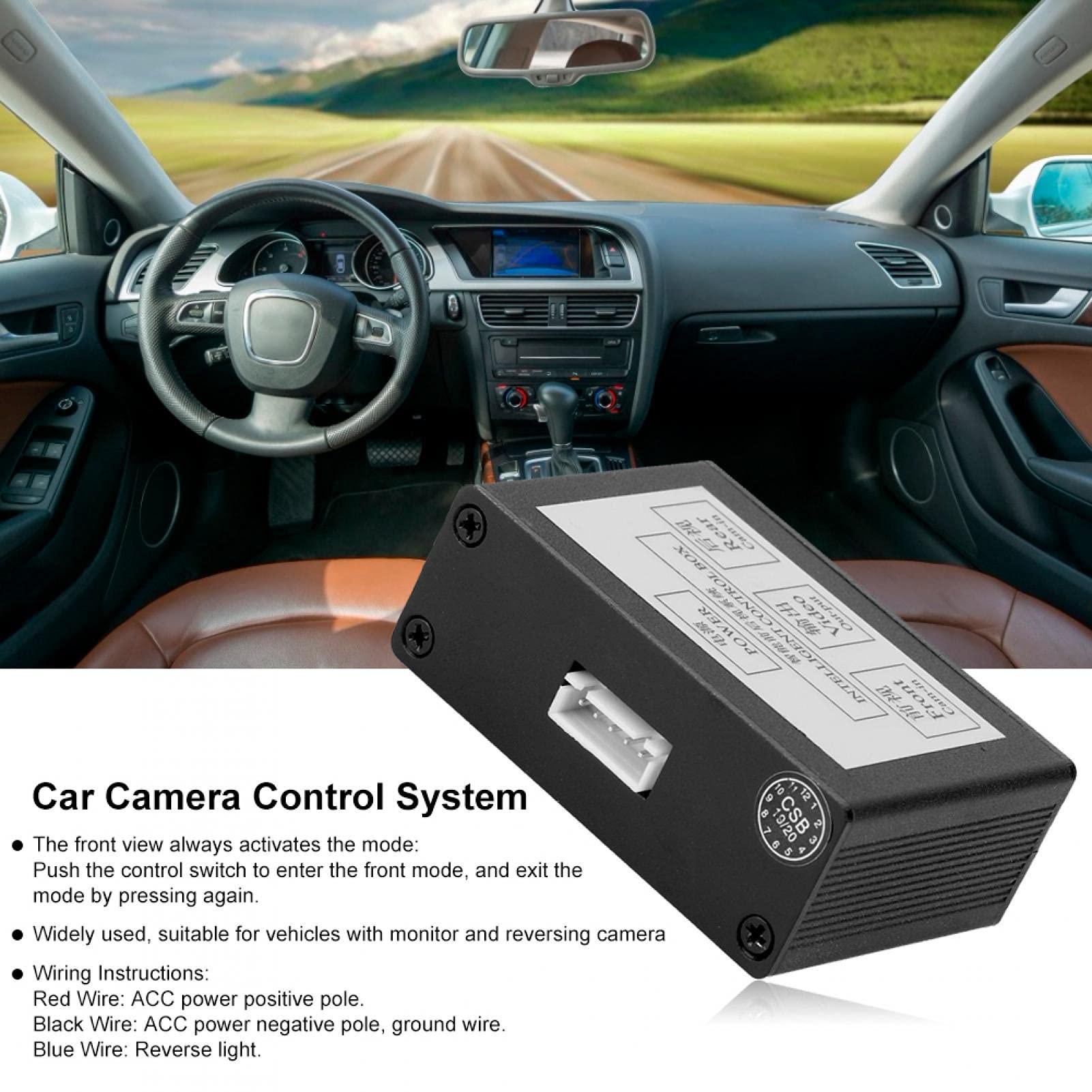

• Push the control switch to enter the front mode, in this mode, the system will monitor and activate the front of the camera at all times. Exit the mode by pressing the control switch again.
• Widely used, suitable for vehicles with monitor and reversing camera, it has no impact to oringal monitor.

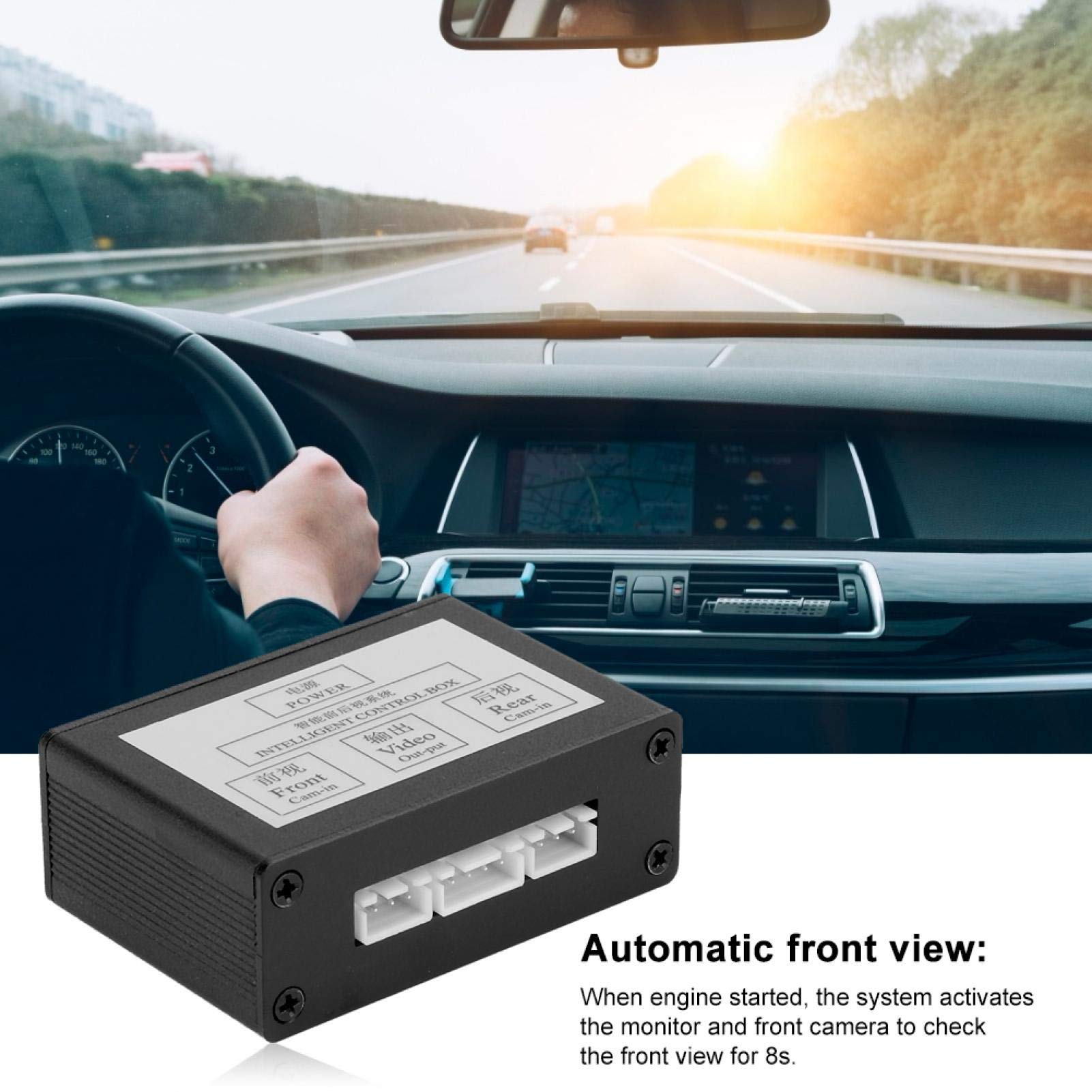

• When the engine is started, the system activates the monitor and the front camera to check the front view for 8 seconds, then turn it off.

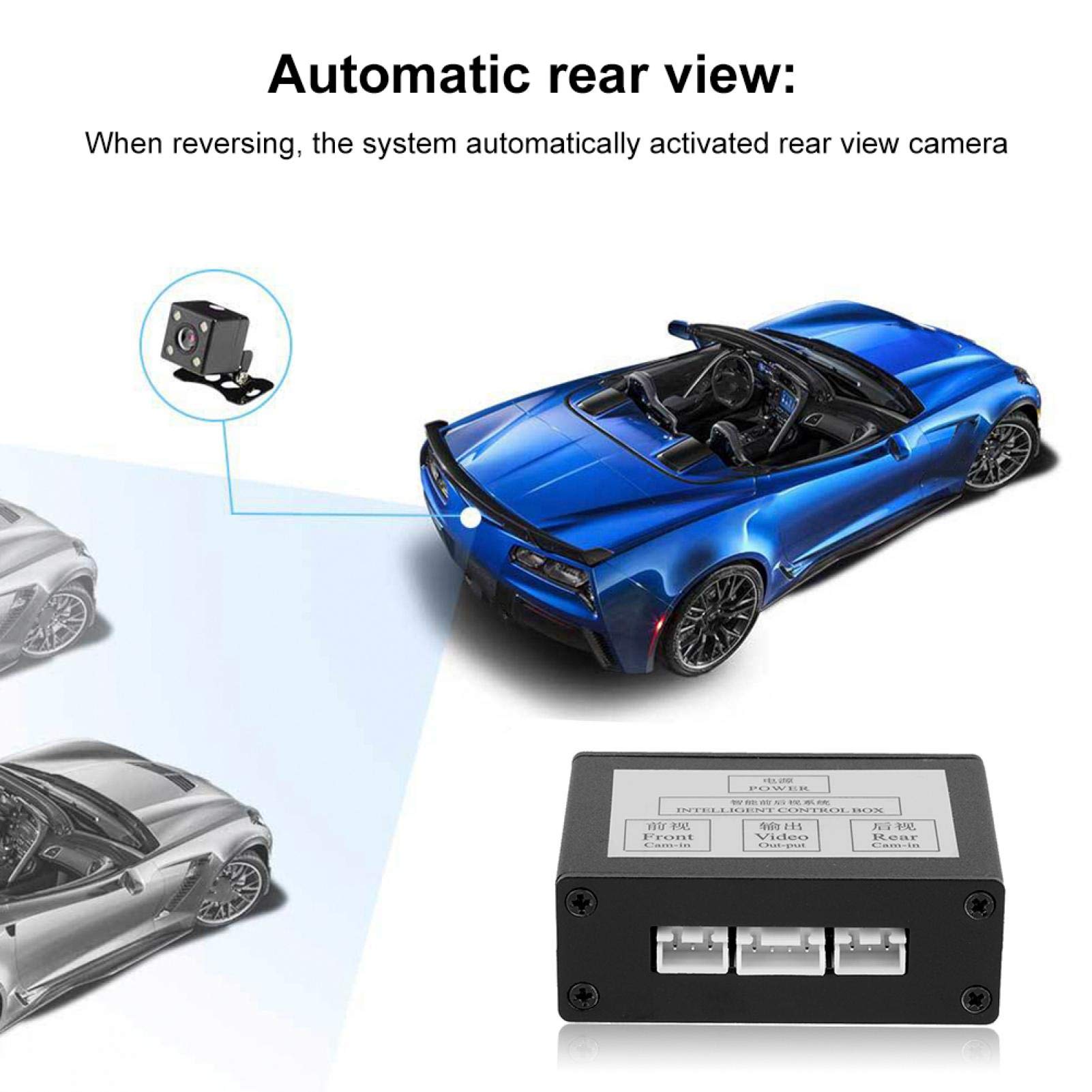

• When reversing, the system automatically activated rear view camera, and switches to the front view of the video camera in 15 seconds, then stops.
• Simple installation, no complicated tools required, it is convenient to use.

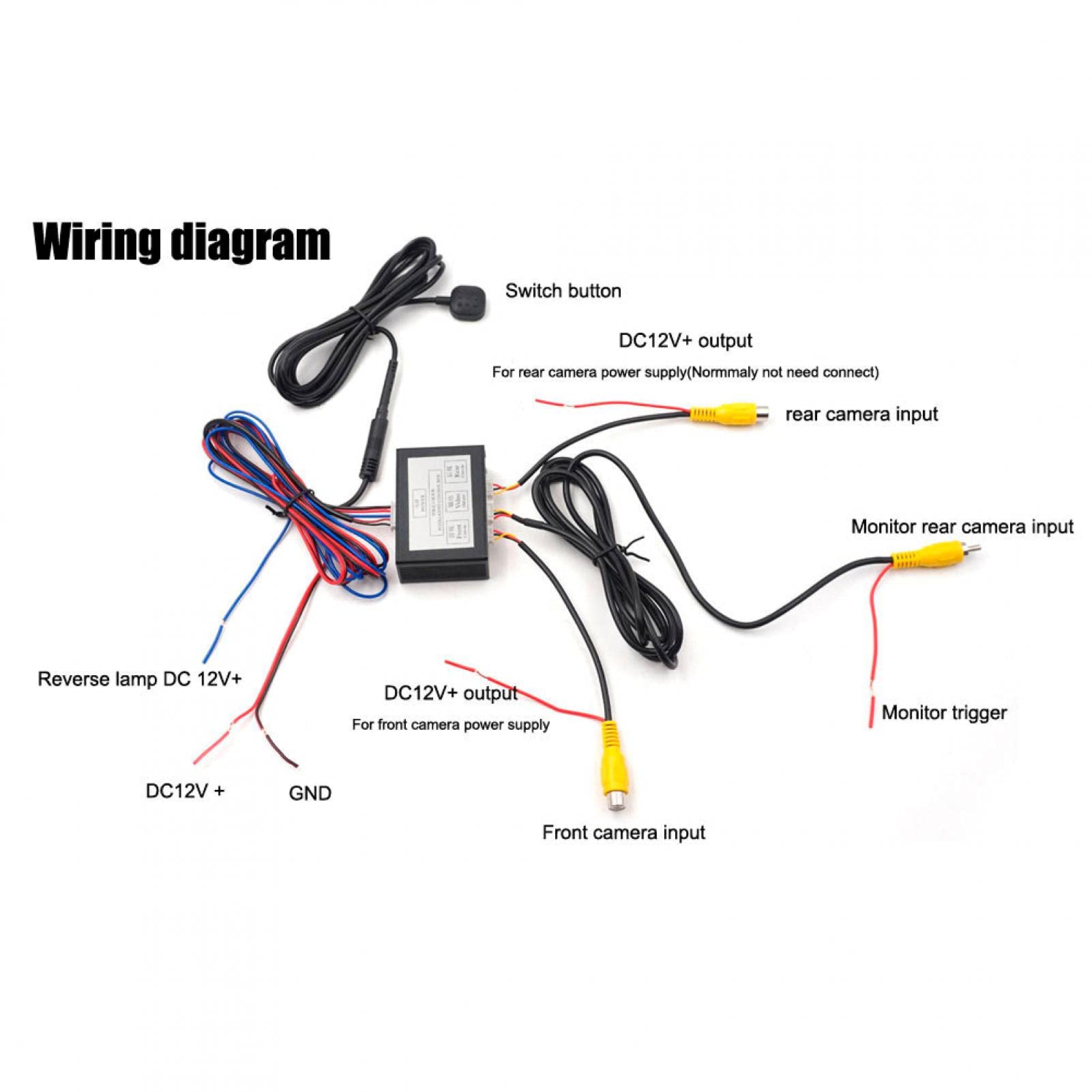

Feature: 1. When the engine is started, the system activates the monitor and the front camera to check the front view for 8 seconds, then turn it off. 2. When reversing, the system automatically activated rear view camera, and switches to the front view of the video camera in 15 seconds, then stops. 3. Push the control switch to enter the front mode, in this mode, the system will monitor and activate the front of the camera at all times. Exit the mode by pressing the control switch again. 4. Widely used, suitable for vehicles with monitor and reversing camera, it has no impact to oringal monitor. 5. Simple installation, no complicated tools required, it is convenient to use. Specification: Condition: 100% Brand New Item Type: Camera Converter Material: Zinc Alloy Color: As picture shown Operating Voltage: 9-16V Operating Current: 10mA Operating Temperature: -10℃ - 70℃ Relative Humidity: ≤ 95% Voltage Output: DC12V Wiring Instructions: Red Wire: ACC power positive pole. Black Wire: ACC power negative pole, ground wire. Blue Wire: Reverse light.Application:As long as the car with a display (such as for navigation, rearview mirror display, and the factory's own screen needs to be decoded before use), and with a reverse camera, all can be used, the ordinary display only one reversing camera signal input, after installing the switcher can be an additional front camera signal input, it had no effect on the original screen. Package List: 1 x Camera Converter 4 x Power Cable 1 x Insruction Note: 1.The small red wire at the temporary input port of the camera video is connected to the positive pole of the front and rear camerapower supplyrespectively. 2.The small redwireof the output port is connected to the triggerwireo
