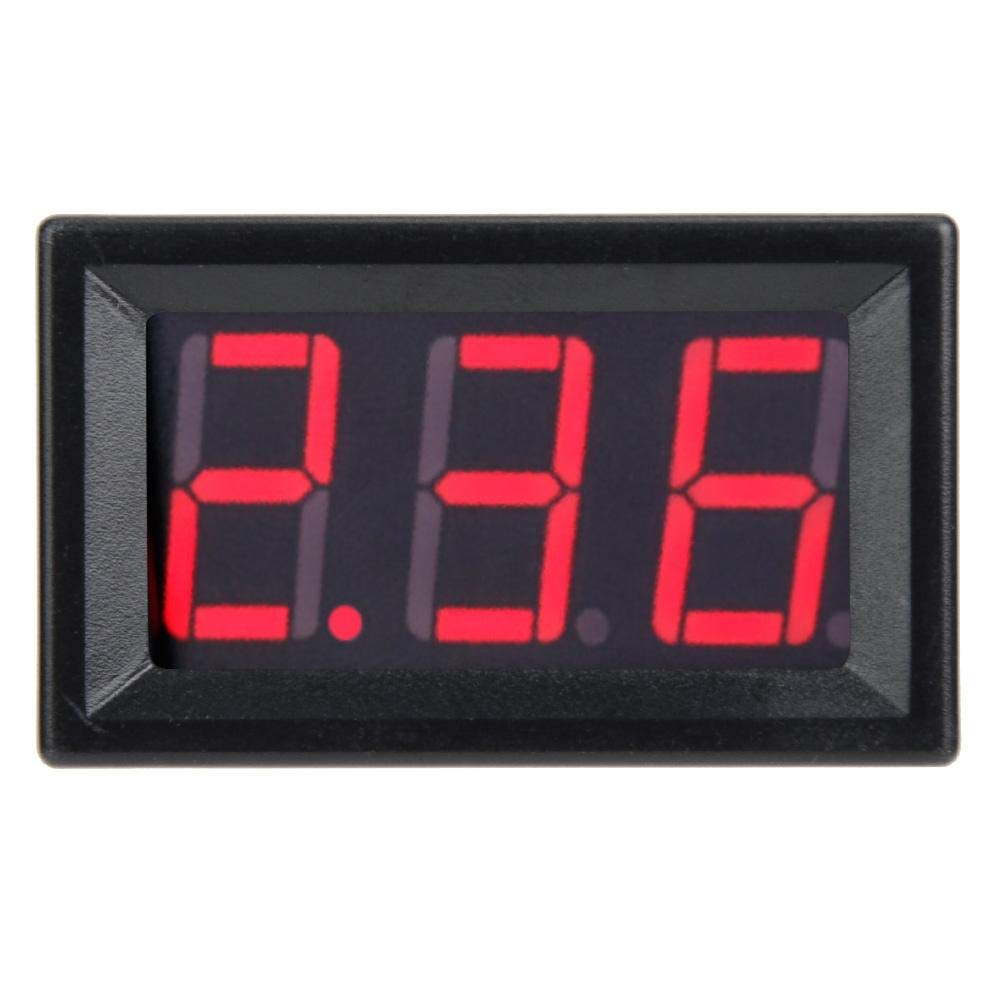

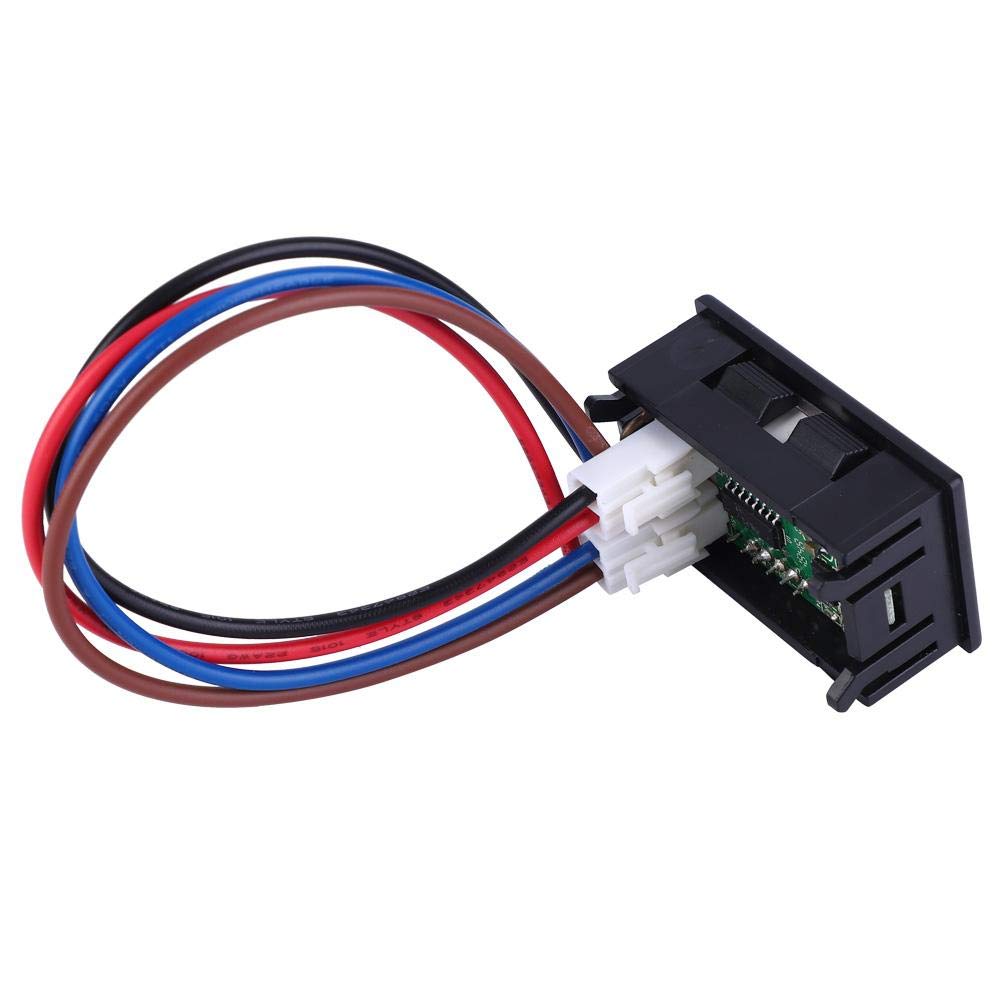

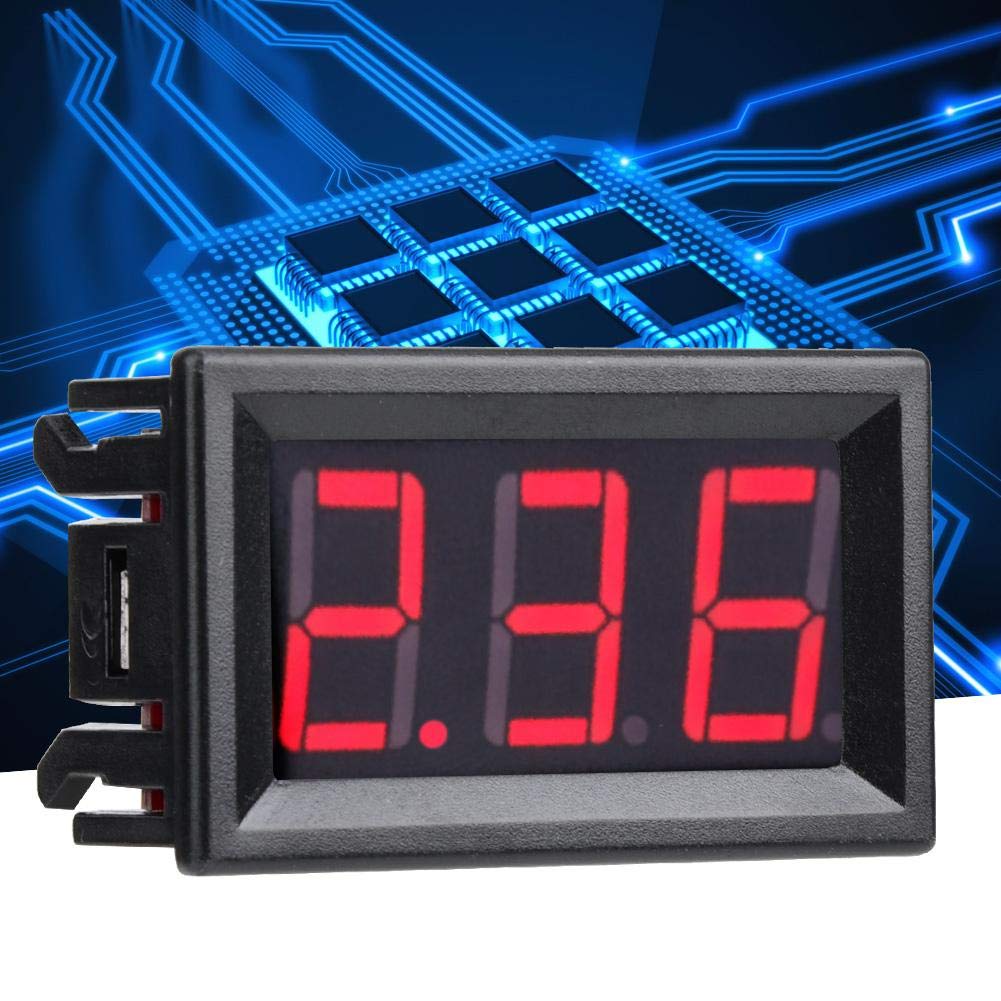

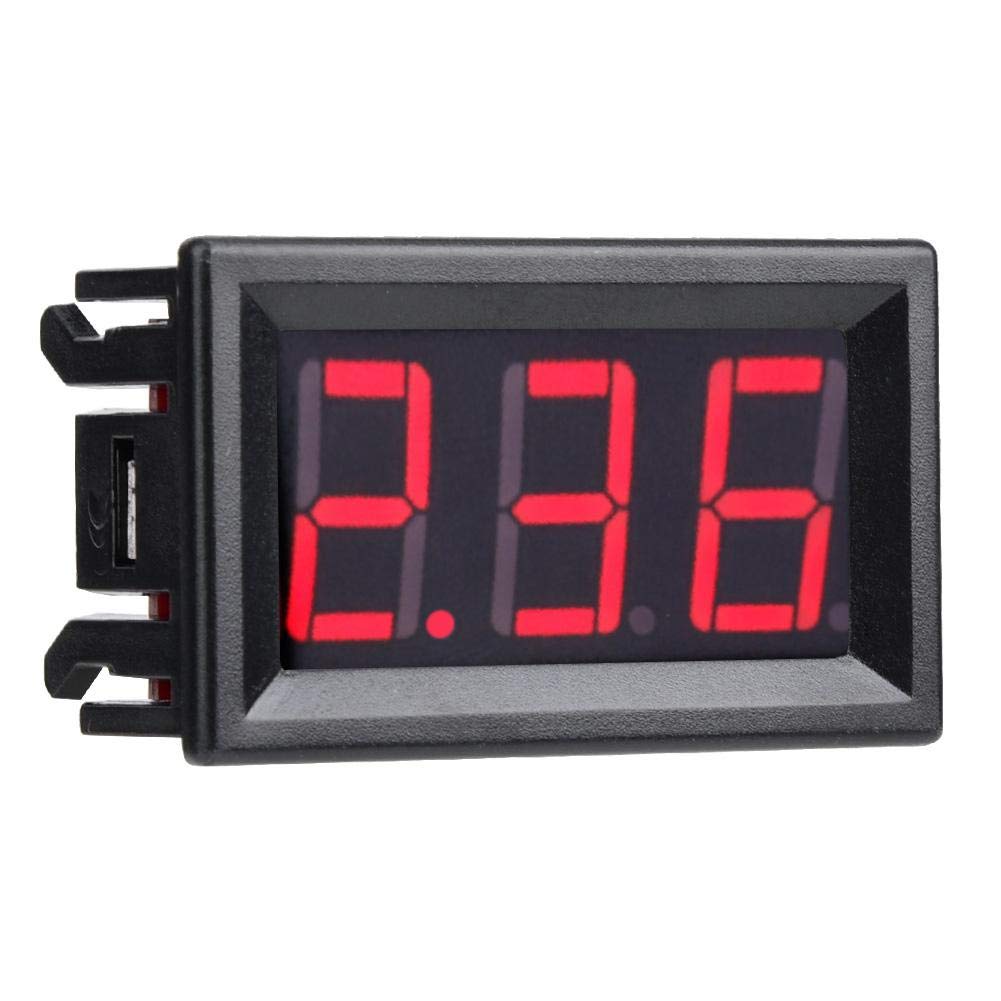

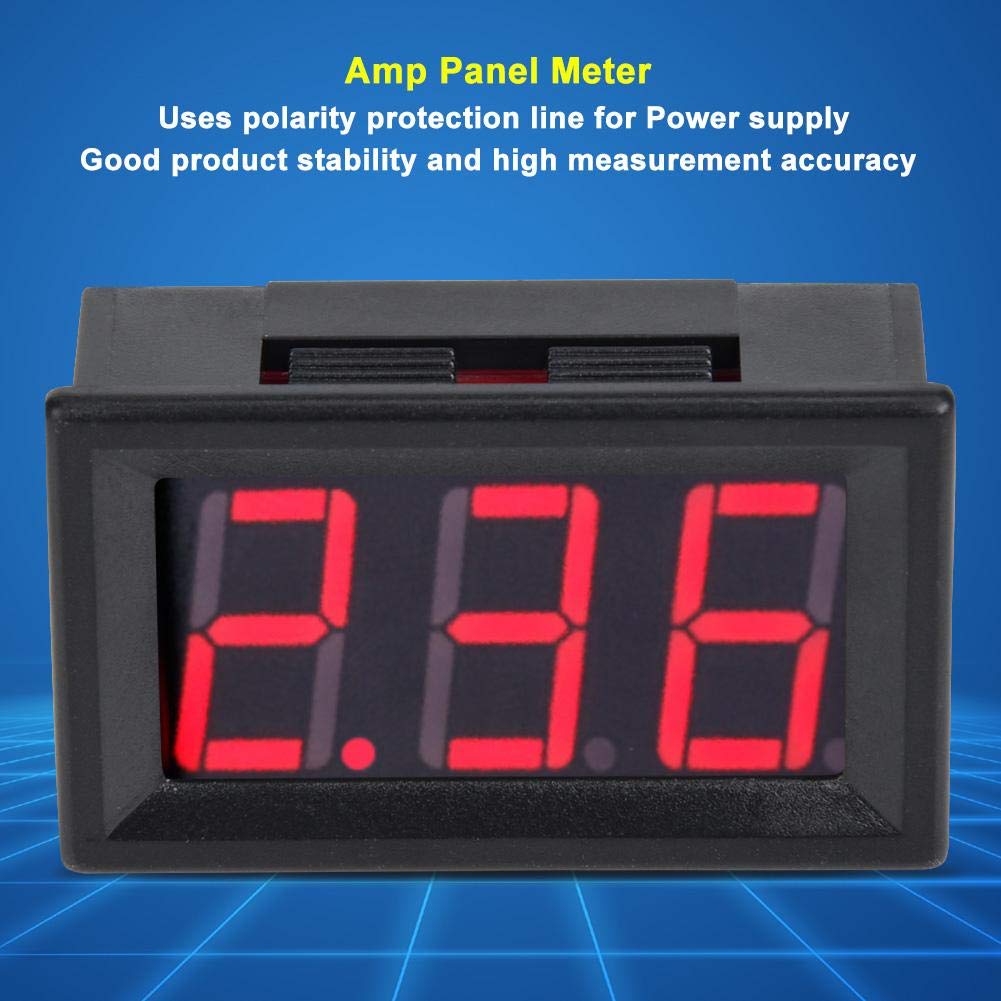

0.56 in Two-Cable Digital DC Current Display Panel 0-10A Ammeter DC4.5~30V(red)

• Good product stability and high measurement accuracy .Bring you a new and different using feeling .
• The exterior size is standard and easy to install .The supply voltage of the digital DC current ammeter is DC4 . 5~30V .
• Uses polarity line for Power supply .You can use this digital DC current ammeter with confidence .
• Mini size ,portable and convenient .You can take the product to the place that you want .
• High quality and for long term use .The quality of the product is guaranteed .

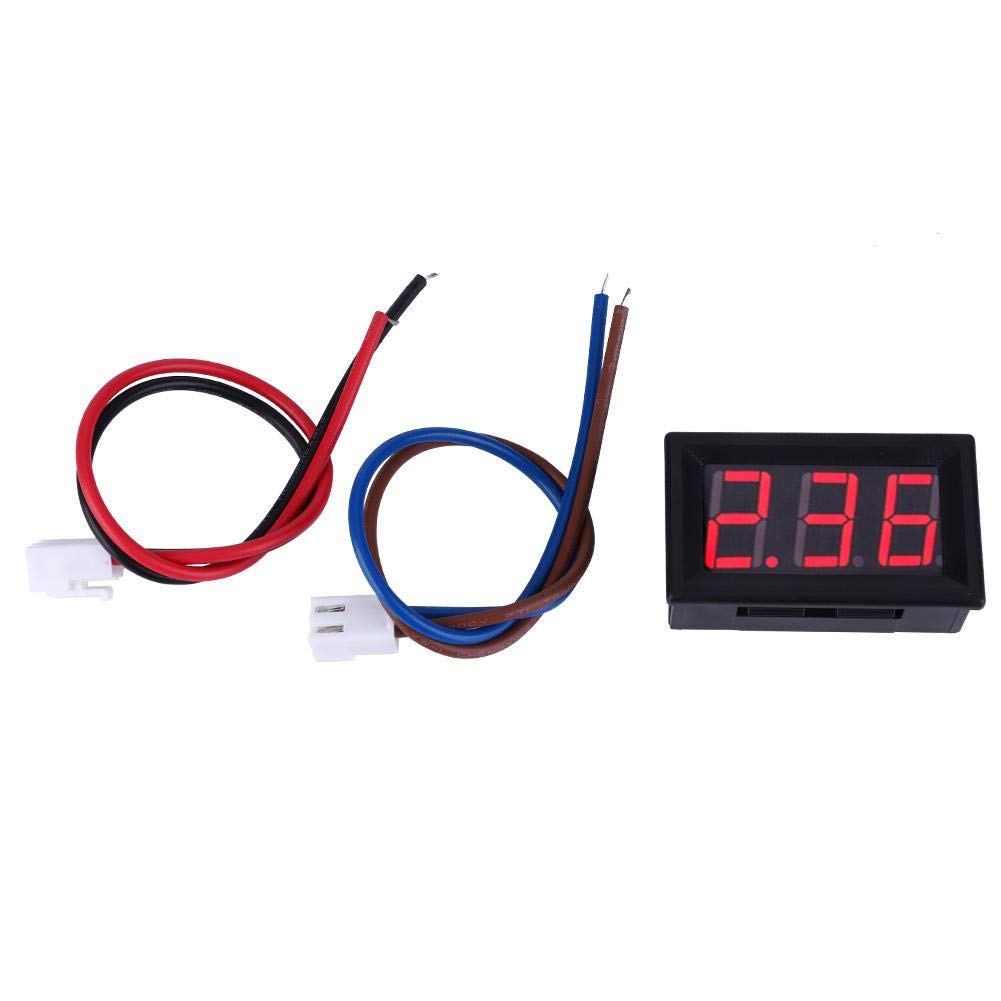

Features: 1. Good product stability and high measurement accuracy. 2. The exterior size is standard and easy to install. 3. Uses polarity protection line for Power supply. 4. Mini size, portable and convenient. 5. High quality and durable for long term use. Specifications: Technical Parameters: Supply voltage: DC4.5~30V Ammeter range: 10A (with overcurrent protection) Working current: <30mA Weight: 17.5g/0.62oz Display mode: 3 digits 0.56' Size: Approx. 48*22*29mm/1.89*0.87*1.14in (length X width X height) Mounting bore: 45.5*25.5 mm/1.79*1 in Measuring rate: >200Ms Measurement accuracy: 1% Extreme working conditions: Low operating voltage: 4.5V Maximum operating voltage: +30V Maximum current output: 9.99A Operating temperature: 1~+65°C) Working humidity: 10~80% (no condensation) Working pressure: 80-106kPa Sun exposure: no direct irradiation Color: Red Yellow Green Blue Optional Package List: 1 * Digital DC current Ammeter 2 * Cable
